Cut and Fill: The 50-Year-Old Site Prep That Can Kill Your Build

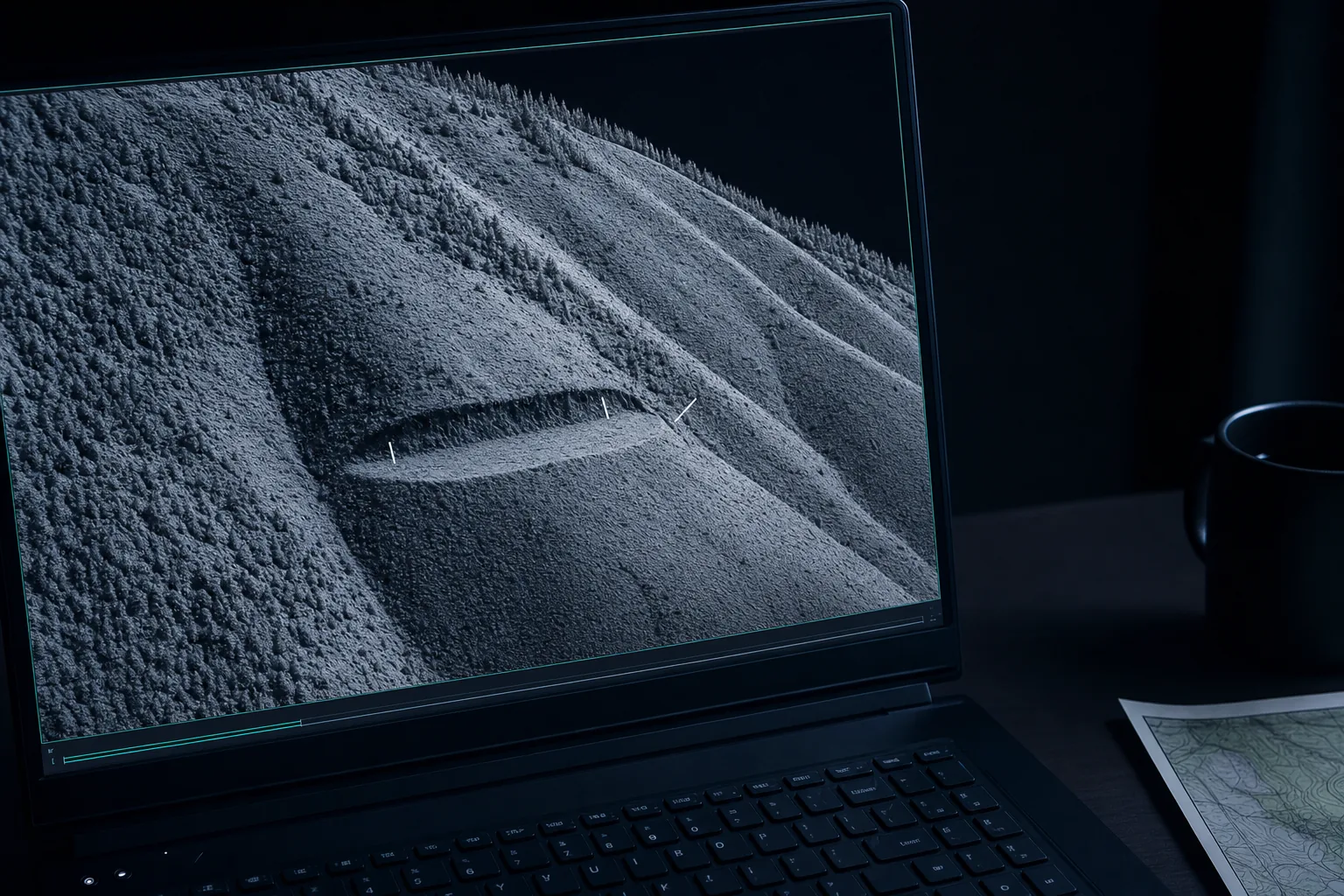

The LiDAR hillshade loaded, and the lot told a different story than every aerial photo had. Google Earth showed a cleared slope. The hillshade showed a flat bench carved into the hillside, a clean cut face uphill, and a fill mass running downhill. Somebody had cut into that hill around 1978, pushed the soil downhill to level it, and parked a mobile home on top. The home was gone. The fill was still there. And the owner wanted to build a stick-built house on the same spot.

What cut and fill actually is

Cut and fill is how most hillside lots get a level pad: soil is excavated from the uphill side and placed on the downhill side to create a flat bench. Done right, modern controlled fill goes in 6-to-12-inch layers, each compacted and tested to 90 to 95 percent of maximum dry density per ASTM standards, documented layer by layer by a geotechnical engineer with a stamped report behind it.

The 1978 pad had none of that. HUD’s manufactured-home standards, adopted June 1976, covered the home, not the site. In rural Oregon back then, an operator cut the hillside, pushed soil downhill, and set the home on pier-and-beam footings. No compaction testing. No documentation. No engineer.

Why old fill fails a new foundation

A mobile home flexes; its piers can be shimmed as fill settles. A poured concrete foundation cannot. When 50-year-old uncontrolled fill settles unevenly under new load, and on a slope it almost always does, the foundation cracks, doors stop closing, and floors go out of level. The fill and native soil also meet at a failure plane where water tracks in from upslope, and saturated fill on a slope does not stay put.

What the terrain triggered

LiDAR (Light Detection and Ranging) builds a bare-earth elevation model; hillshade rendering lights it so cut faces and fill benches show up even at 50 years old. DOGAMI maintains Lane County coverage accurate to under 10 centimeters; the USGS 3DEP program covers most of the country at no cost through the National Map.

On this Lane County RR-5 parcel, the public mapping dropped three non-discretionary requirements onto the permit: a geotechnical report (very high landslide susceptibility plus prior development, under LCC Title 16), enhanced erosion control (Jory and Nekia clay-heavy soils in a Mercury TMDL watershed, where sediment control is legally required under Section 303(d) of the Clean Water Act), and on-site stormwater retention for all new construction.

What the engineer looks for, and what it costs

A geotechnical study drills three to six borings, 10 to 30 feet through fill into native soil, measuring the Standard Penetration Test N-value, the blow count to drive a sampling tube 12 inches. An N-value below 10 is too loose for most residential loads. On a slope with prior failures, they also run a slope-stability analysis for a factor of safety; below 1.5 under static conditions, or below 1.1 under seismic loading, is not acceptable.

Sometimes the answer is unbuildable, in one of three ways: geotechnically (no feasible foundation exists), economically (removing and replacing fill, or driving deep piers and helical piles to reach competent soil, runs into the tens or hundreds of thousands), or regulatorily (setbacks and overlays erase the buildable area).

The study runs $3,000 to $8,000. Foundation repair after differential settlement runs $50,000 into six figures. A title report won’t catch any of it. It covers legal encumbrances, not soil. And the geometry reads the same whether the lot is in Lane, Deschutes, King, or Kootenai County. The buyers who get hurt are the ones who close without asking the terrain any questions.
