What Professional Services You Actually Need to Build a Home on Your Own Land

You bought land to build on. You found a builder. You got a price. Then the permit application went in and the building department sent it back with a requirement you had never heard of: a geotechnical report. Your lot sits on a slope greater than 15 percent. The county has a geohazard overlay. The report is mandatory before the permit can be issued.

Your builder did not know this going in. The number had never been part of your budget.

The geotechnical report costs $2,700 on average. At the beginning, before you signed anything, that would have changed a line item in your budget. At the back end, inside a signed contract and a timeline you were counting on, it becomes a problem you have to solve with money you do not have.

That is not a rare outcome. It is what happens when the regulatory layer attached to a piece of land does not get read before the builder conversation starts.

Building a home on your own land requires some combination of professional services depending on the parcel: a boundary survey, a topographic survey, a geotechnical report, civil engineering for grading and drainage, structural engineering, compaction testing, a landscape architect, and in some cases an architect required by HOA or ARC covenant. Which services your project requires depends on three separate layers: what government regulation mandates for your specific parcel, what HOA and ARC covenants require, and what your builder decides to add above those two floors. The first two layers are not optional and are not a negotiation. They are attached to your land before you ever sat down with anyone.

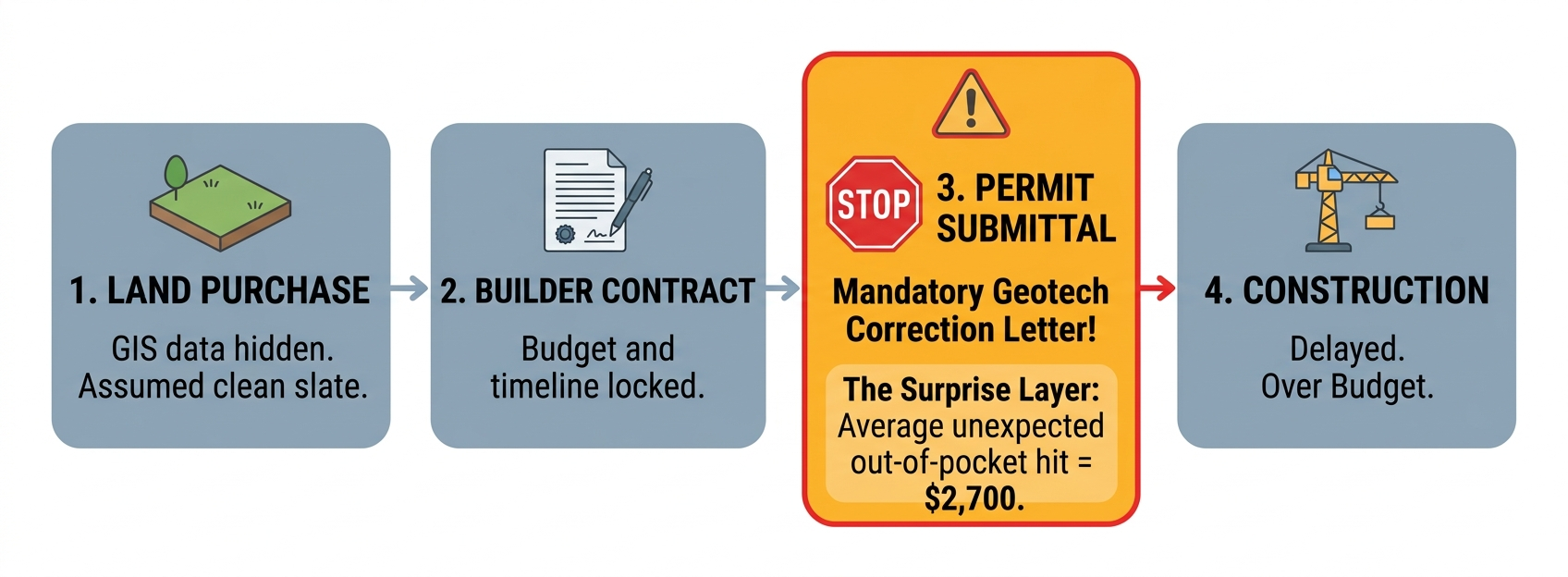

Why the Cost Surprise Happens After the Contract

Professional services costs land on buyers after contracts are signed because no one checked what the parcel required before the contract was written.

The problem is not that builders skip services to save money. Builders cannot skip services that the building department requires for a permit. The problem is that neither you nor your builder may know what the jurisdiction requires until the permit application comes back with a correction letter asking for it. By that point you are inside a timeline and a budget that did not account for it.

A lot does not announce what it requires when you buy it. The geohazard overlay is in the county GIS system. The slope data is in the assessor records. The HOA covenants are in the title chain. All of it existed before you closed. Reading it before the builder conversation gives you a number you can actually budget for. Finding out about it at permit submittal gives you a problem.

What the Professional Services Cost and What Each One Does

A residential build on your own land requires some combination of eight professional services, each triggered by a different layer of regulatory, covenant, and site condition requirements, with costs ranging from $500 to more than $30,000 depending on parcel complexity.

A boundary survey, typically $500 to $2,500 depending on parcel complexity, establishes where your property lines legally are. Not where they look like they are. Where they are. It finds encroachments, maps easements, and gives any site plan a legal foundation to build from. On any lot where corners are not recently confirmed on record, this is the starting point.

A topographic survey, typically $1,800 to $6,500, maps the actual terrain of your land: the slope percentages, the drainage flow patterns, the contours, and the true buildable area. These numbers drive every downstream decision on a sloped or complex site. A home sited on incorrect slope data produces a foundation design that does not match the ground. Every other professional service on the list uses the topographic survey as its dataset.

A geotechnical report, averaging around $2,700 and typically ranging from $1,400 to $5,000, puts a licensed engineer’s findings on the soil under your lot: bearing capacity, settlement risk, the presence of expansive clay, and the depth of the water table. When a geohazard overlay applies to your parcel, the building department requires this report before a permit is issued. Your builder cannot submit a complete application without it.

There is a specific technical point about bearing capacity that is worth understanding here. The standard code reference values do not evaluate settlement. A clay soil can pass the bearing capacity standard and still settle several inches over months after construction, cracking your foundation and driving diagonal fractures through your walls. Clay soils that look acceptable on one measure can still fail a settlement analysis. A geotechnical report evaluates both. A presumptive bearing value alone is not a clearance on settlement. This is why, when the regulatory layer triggers the geotech requirement, it is not optional.

Civil engineering for grading and drainage produces the stamped grading plan, the drainage design, and the stormwater calculations the building department accepts. On any site with meaningful slope, it covers driveway design and proves the drainage system performs within code. Without this document on sites that require it, your permit application is incomplete.

Structural engineering, running $8,000 to $30,000 depending on complexity, covers foundation design, snow and wind load calculations for your specific site, and any retaining walls the site requires. If your site conditions go beyond what standard code covers, the structural engineer’s stamp is what makes the permit application legally sufficient.

Engineered fill and compaction testing, at $200 to $500 per test, verifies that any fill placed during site prep meets the required density standard. That standard is 95 percent of Standard Proctor density (ASTM D698). No one can confirm this by looking at the ground. The test requires a device. If your project involves fill, this testing is not a formality. It is how you document that the material under your foundation was placed correctly, and it is what the geotechnical engineer needs before signing off on a foundation built on fill.

A landscape architect handles what happens to the slope around your structure after construction: stabilization, erosion control, and surface drainage that moves water where the civil engineer intended rather than where gravity takes it. On sites with erosion-sensitive soils, some jurisdictions require a landscape plan from a licensed professional.

An architect at 8 to 15 percent of build cost surprises most land buyers because its most common trigger has nothing to do with the government. HOA and ARC covenants in planned communities require architect-stamped plans as a condition of design approval. These covenants are recorded instruments. They run with the land. They apply to your project whether or not you read them before you closed. If your lot is in an HOA, finding out what the ARC requires before you hire a builder is how you avoid a redesign you did not expect.

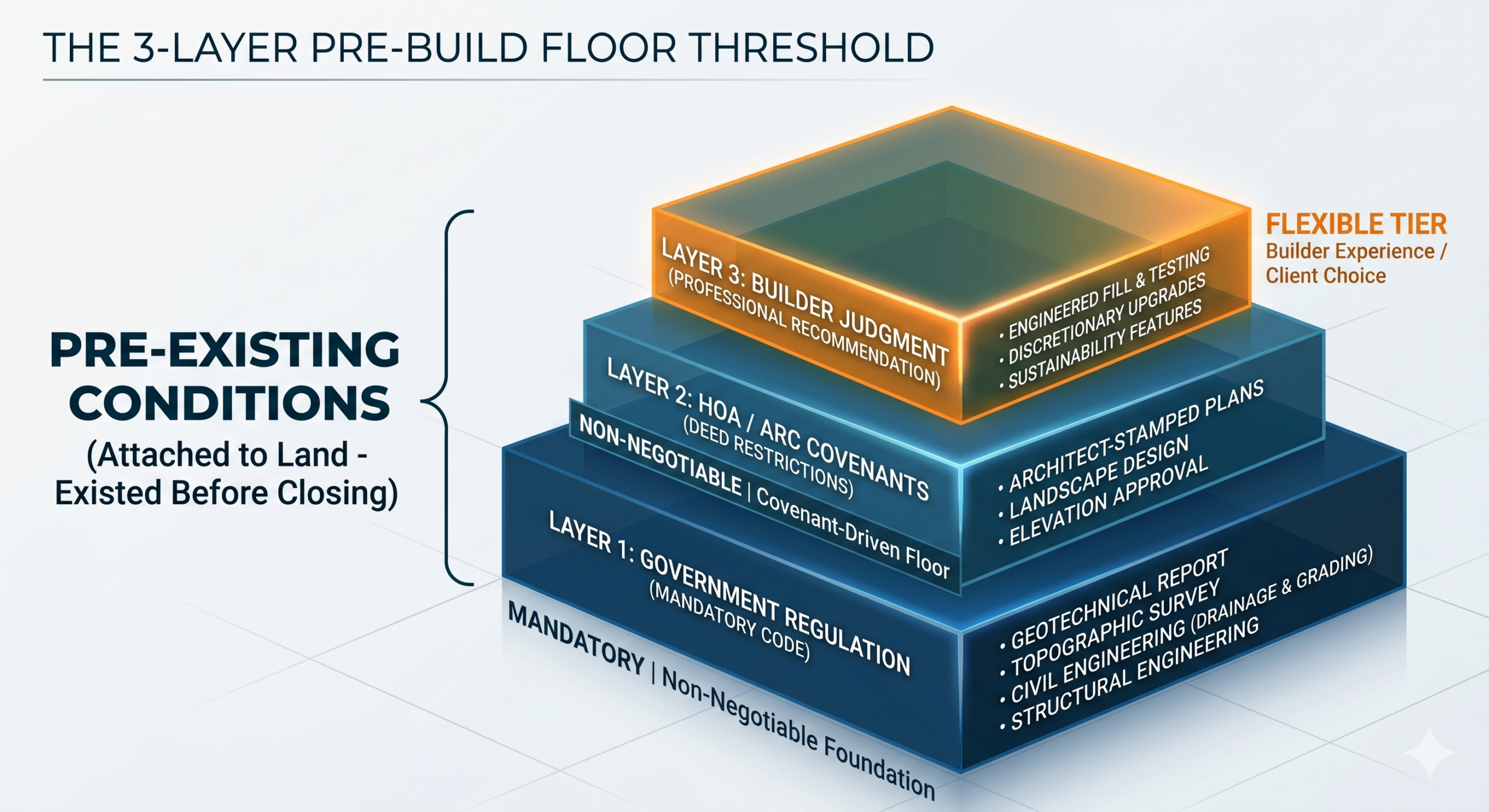

The Three Layers That Determine What Your Lot Requires

Government regulation is the first layer. Geologic hazard overlays in many Pacific Northwest jurisdictions are triggered at slopes greater than 15 percent. If your parcel maps into that overlay, a geotechnical report is a mandatory permit requirement. Landslide hazard designations, erodible soil classifications, and floodplain adjacency work the same way: they are data flags in the county’s own maps that generate automatic requirements at permit submittal.

You do not find this out when you buy the land. You find it out when the permit application comes back.

HOA and ARC covenants are the second layer. They operate independently of government regulation. Your lot can sit below every government regulatory threshold and still carry HOA covenants requiring architect-stamped plans, landscape design, and grading and drainage plans as conditions of design board approval. These requirements exist regardless of what the county requires separately. A lot that clears the government layer is not automatically clear on the covenant layer.

Builder judgment is the third layer, and it only applies above the other two. Once you know what the regulatory layer requires for your specific parcel, and once you know what your HOA requires, what remains is where your builder’s professional experience informs the decision. Below those two floors, the decisions have already been made by code and covenant. No one in that conversation has discretion over them.

The sequence matters. The mistake that produces cost surprises after contracts are signed is treating the builder’s judgment as the first filter rather than the third.

The Specific Risk the Data Shows

Expansive soils cause more structural damage to light buildings annually than any other natural hazard, including earthquakes and floods. That is not a scare statistic. It is a cost comparison. The geotechnical report that identifies whether expansive clay is under your foundation costs $1,400 to $5,000. Foundation repair after differential settlement on expansive soil runs tens of thousands of dollars and does not restore the home to its original condition. The cost asymmetry is not close.

Building codes, per National Institute of Building Sciences research, save approximately $11 for every $1 invested beyond older code generations. The professional services that make a permit application complete are part of that return. They are the mechanism by which the code applies to your specific project on your specific land.

Source attribution: National Institute of Building Sciences (NIBS), Natural Hazard Mitigation Saves: 2019 Report. Expansive soil damage ranking: original Jones and Holtz research, corroborated in subsequent ASCE geotechnical literature. Oregon code reference: Oregon Building Codes Division, adopted ORSC and OSSC.

The data that determines which professional services your parcel requires is in the public record before your project starts. Geohazard overlays in the county GIS system. Slope data in the assessor records or publicly available LiDAR. HOA and ARC covenants in the title chain. The information is not hidden. Reading it requires knowing where to look and what the results mean for your specific parcel. Geohazard overlays, slope thresholds, and covenant layers exist across county GIS systems, planning department portals, and recorded deed documents, each in a different format and each requiring a different lookup.

SiteFacts reads the regulatory layer on a specific parcel before the builder conversation starts, and that work is grounded in more than 250 reports completed across 115 jurisdictions in the Pacific Northwest. It flags which geohazard overlays apply, what slope the parcel is mapped at, whether the county’s own data triggers a mandatory geotech requirement, and whether HOA presence shows in available records. That information is what converts a budget guess into a budget grounded in what your land actually requires. If you want to understand what cut-and-fill requirements, grading complexity, and drainage obligations look like on sloped lots before the permit application stage, this post on cut-and-fill hidden risks walks through what the data typically surfaces.

The End State That Makes This Worth Reading

You sit down with the builder already knowing what your parcel’s regulatory layer requires. You know which professional services are mandatory, which are covenant-driven, and which are genuinely optional. You know your slope percentage, whether a geohazard overlay is attached to the parcel, and whether an ARC covenant requires architect-stamped plans. The builder’s bid reflects site-specific requirements, not generic assumptions. When the jurisdiction asks for the geotechnical report at permit submittal, it was already in the plan.

No surprises. No costs landing on your budget after you are committed.

That is what reading the regulatory layer in advance produces. Not the elimination of professional services costs. The elimination of the surprise.
